01_SYNC

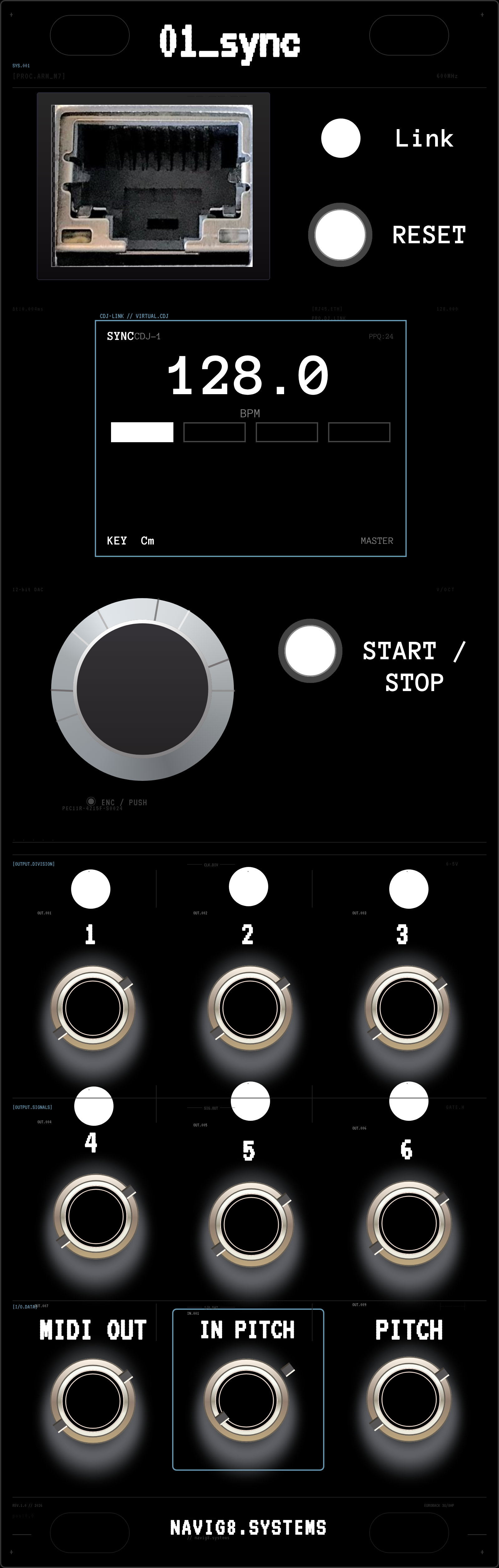

CDJ LINK → CV/GATE CONVERTER

Eurorack DJ sync. Derives master tempo
and transport direct from a Pioneer
PRO DJ LINK network — tight, drift-free
clocking for your modular rig.

v2.4.1-rc // ARM CORTEX-M7 @ 600MHz

┌ ┐ └ ┘

x:600 y:080

x:900 y:680

Syncing your Eurorack with DJ gear

STATUS: ONLINE

BPM: 128.000

PHASE: 0.00°

TRANSPORT: ▶ PLAY

UDP_IN: 50000

LATENCY: 0.4ms

JITTER: ±0.02ms

CV_OUT: 1.245V 2.891V 0.000V 3.333V

GATE: HIGH LOW HIGH HIGH

MASTER CLOCK

DIN-Sync style x24 analog clock locked directly to the DJ Link master tempo. Just-works setup — no configuration.

── MODULE.CLOCK ──────────

PITCH CV

1V/oct pitch derived from CDJ track key analysis. Turns the booth into a quantised note source.

── MODULE.PITCH ──────────

TRANSPORT GATES

Beat, bar and transport triggers with automatic start/stop detection. Cue the room, trigger the rack.

── MODULE.GATE ───────────

SYS.BOOT: 0x4F2A ── READY ────────── MEM: 412K/512K UPTIME: 00:42:17 ──── ETH0: LINK_UP // 100Mbps © NAVIG8.SYSTEMS 2026

THE MODULE THAT LISTENS

bring ur EURORACK to the gig / b2b / sesh

┌ ┐ └ ┘

OBSERVING // CDJ NETWORK TOPOLOGY

PRO DJ LINK PROTOCOL

Listens to the full PRO DJ LINK
network over Ethernet. Decodes
master tempo, beat phase and
transport in real time with
automatic start and stop
detection. No MIDI, no USB,
no configuration.

── PROTO.UDP ─────────────

OUTPUT ASSIGNMENTS

[OUT.MAP]

6 VARIABLE OUTPUTS + 3 FIXED

── VARIABLE ──

MASTER CLK

DIN-Sync x24 analog clock locked to the master tempo of the PRO DJ LINK network.

24 PPQN · DIN-SYNC

BEAT TRIG

Trigger pulse on every beat, phase-locked to the designated master deck.

+5V pulse · beat-sync

BAR TRIG

Downbeat trigger fires on each bar marker decoded from the DJ Link stream.

+5V pulse · bar-sync

TRNS GATE

Gate follows CDJ transport state. Automatic start and stop detection, <1ms response.

+5V / 0V · <1ms

BPM CV

Voltage proportional to master BPM. Linear mapping across the 60-200 BPM range.

0-5V · BPM linear

PHASE CV

Beat-phase CV that ramps once per beat. Drive envelopes or LFO resets off the grid.

0-5V · beat ramp

── FIXED ──

IN PITCH

Dedicated 1V/oct pitch input to the on-board quantiser. Patch any CV source to key.

1V/OCT IN · 0-5V

PITCH OUT

Quantised 1V/oct output locked to the selected root and scale. Always-in-key source.

1V/OCT OUT · 0-5V

MIDI OUT

MIDI clock, note and CC via 3.5mm TRS Type A. USB MIDI also available.

TRS TYPE A · CLK+NOTE

ref:0x00B7 // observe.render ────────────────────── FRAME:002/004 ── OBSERVE ────── NODES: 847 // EDGES: 2,041 PROTO.VER: 2.4.1-rc

OUTPUTS

SIX CONFIGURABLE CHANNELS // 12-BIT DAC // 0-5V RANGE

[OUT.01] CLK

MASTER CLOCK

DIN-Sync style x24 analog clock and Run output locked to the master tempo of the PRO DJ LINK network. Tight, reliable sync for the whole rack.

24 PPQN

DIN-SYNC X24

JUST-WORKS

[OUT.02] CV

PITCH CV

1V/oct pitch CV derived from CDJ track key analysis. Feed LFOs, sequencers and unquantised CV straight into musical pitches.

0-5V · 1V/OCT · 12-BIT DAC

[OUT.03] GATE

TRANSPORT GATES

Beat, bar and transport gate outputs. Automatic start and stop detection follows CDJ play and cue state instantly.

BEAT · BAR · PLAY · CUE

[OUT.04] MULTI

MULTI-CDJ

Listens to the entire PRO DJ LINK network. Follows the designated Master deck automatically, or lock to any one of 4 CDJs — independently assignable per output.

4 PLAYERS MAX

MASTER FOLLOW

AUTO-DISCOVERY

[OUT.05] EUCL

EUCLIDEAN PATTERNS

Euclidean gate patterns locked to the DJ Link master clock. Spread K pulses across N steps for polyrhythmic, beat-quantised rhythm generation straight out of the booth.

E(K,N) · 32 STEPS MAX · ROTATION OFFSET

[OUT.06] QUANT

CV QUANTIZER

Quantises feral voltages into musical pitches. Pick a scale and root, patch any CV source in — turn LFOs into arpeggiators, random voltages into harmonic counterpoint.

CHROMATIC · MAJOR · MINOR

PENTATONIC · BLUES · DORIAN

1V/OCT · ROOT SELECT C-B

[OUT.07] DIV

CLOCK DIVIDER

Clock divisors and multipliers from /16 to x2 for rhythmic subdivisions. Per-channel ratio with off-grid Flex microtiming for swing and feel.

/1 /2 /4 /8 /16 · x2 MULT

FLEX SWING ±50% · PER-CHANNEL

6 CHANNELS ACTIVE // DAC.12B // 0-5V [SYS.OUT_MAP]

FRAME:007/007 ── WAITLIST DOC:NS-WL-007 // REV.03

REF:WL-001.A SYS:ACTIVE

┌ ┐

JOIN THE WAITLIST

└ ┘

A-SYNC // CDJ LINK → CV/GATE CONVERTER

Be first in line. A-SYNC locks your Eurorack directly to the PRO DJ LINK network — master tempo, beat, bar and transport — with pitch CV, quantised outputs and Euclidean patterns built in. Tight, drift-free clocking for the whole rack. Limited first production run — reserve your slot now.

UNITS

LIMITED

SHIP

Q3 2026

PRICE

TBA

┌

┐

EMAIL ADDRESS

NO SPAM. UNSUBSCRIBE ANYTIME. YOUR DATA IS NOT SOLD.

└

┘

WHAT YOU GET

→ EARLY ACCESS PRICING
→ FIRST BATCH PRIORITY
→ FIRMWARE BETA ACCESS
→ DIRECT DEVELOPER CHANNEL
→ BUILD UPDATES + PROGRESS LOGS

FIRST PRODUCTION RUN: 50 UNITS
HAND-ASSEMBLED // TESTED // CALIBRATED
